GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T

NSX-T là gì? Tìm hiểu nền tảng ảo hóa mạng VMware NSX-T – OceanTech Group


Bạn đang thắc mắc NSX-T là gì? VMware NSX-T là nền tảng ảo hóa mạng giúp doanh nghiệp xây dựng hạ tầng mạng linh hoạt, bảo mật cao cho Data Center, Cloud và Kubernetes.


Giới thiệu nền tảng ảo hóa VMware NSX-T


Khi tìm hiểu NSX-T là gì, có thể thấy đây là nền tảng quan trọng trong Software-Defined Data Center (SDDC). Dưới đây là những thông tin chi tiết giúp bạn nắm vững về giải pháp này.

I. Giới thiệu VMware NSX-T

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 1-24f243b6-cc80-4ca4-a13d-b28b25cda054 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

VMware NSX-T Data Center là giải pháp ảo hóa hạ tầng mạng và bảo mật cho các Virtual Machine (ESXi, KVM) trên Server vật lý. Những điểm nổi bật của NSX-T là gì?

  • NSX-T là phiên bản thế hệ tiếp theo của VMware NSX (NSX-V) với khả năng tích hợp Kubernetes (K8S).
  • Cung cấp giải pháp bảo mật “Full Stack Layer 2 to Layer 7 Platform”.
  • Hỗ trợ hệ thống Software-Defined Data Center (SDDC) với 3 mặt phẳng: Control, Data và Management Plane.
  • Sử dụng giao thức đóng gói dữ liệu mới GENEVE (mạnh mẽ hơn VXLAN).
  • Triển khai dễ dàng qua file OVA/OVF trên ESXi hoặc KVM.

II. Kiến trúc VMware NSX-T Architecture

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 2-f6c3f568-4e77-45a6-8797-197cc83db107 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

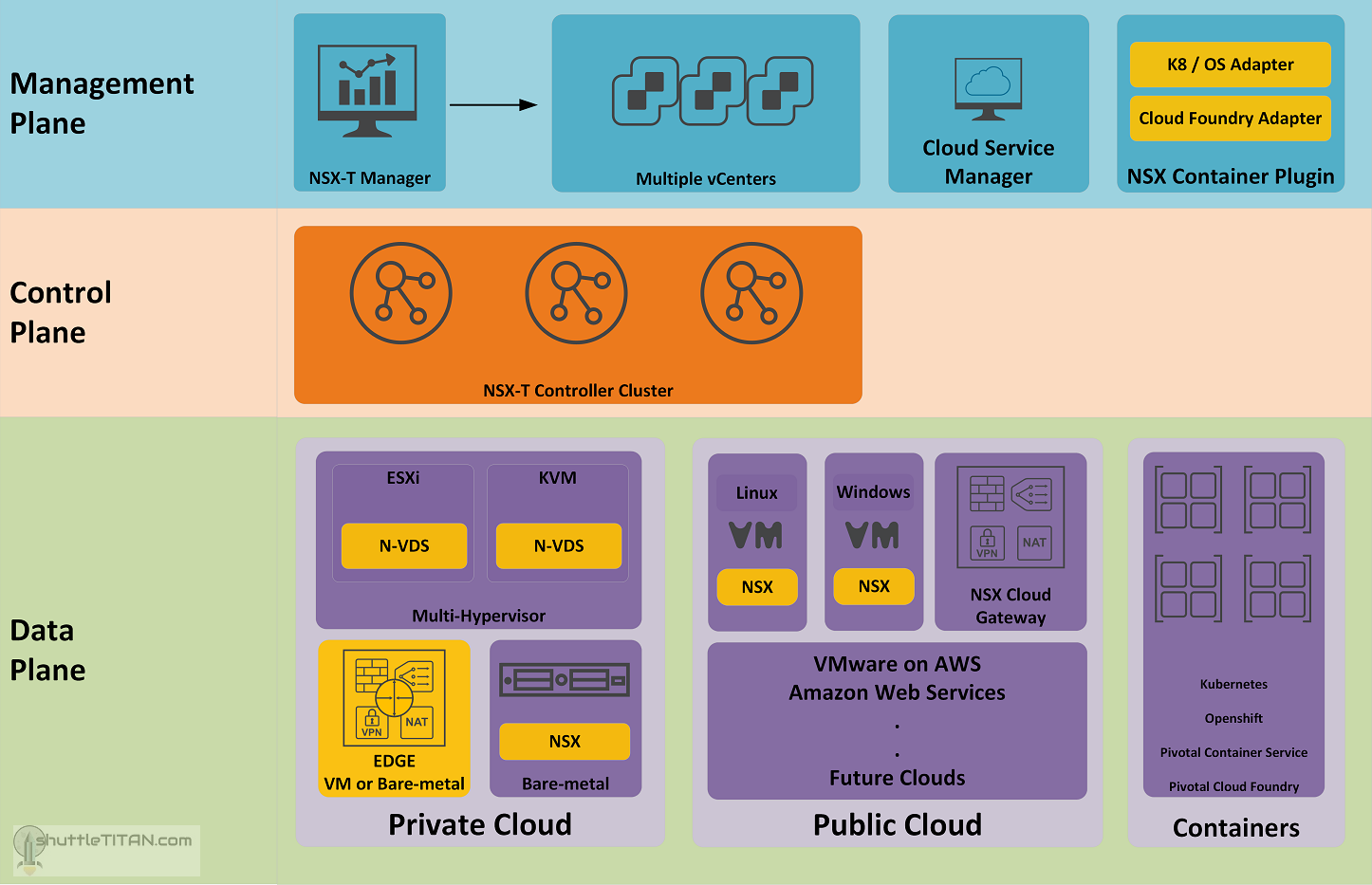

Kiến trúc của VMware NSX-T hoạt động theo mô hình SDN (Software Defined Networking) gồm có Control Plane, Data Plane và Management Plane.

1. Management Plane

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 3-6ceac2f3-92b9-44bb-8fe0-026299864b89 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

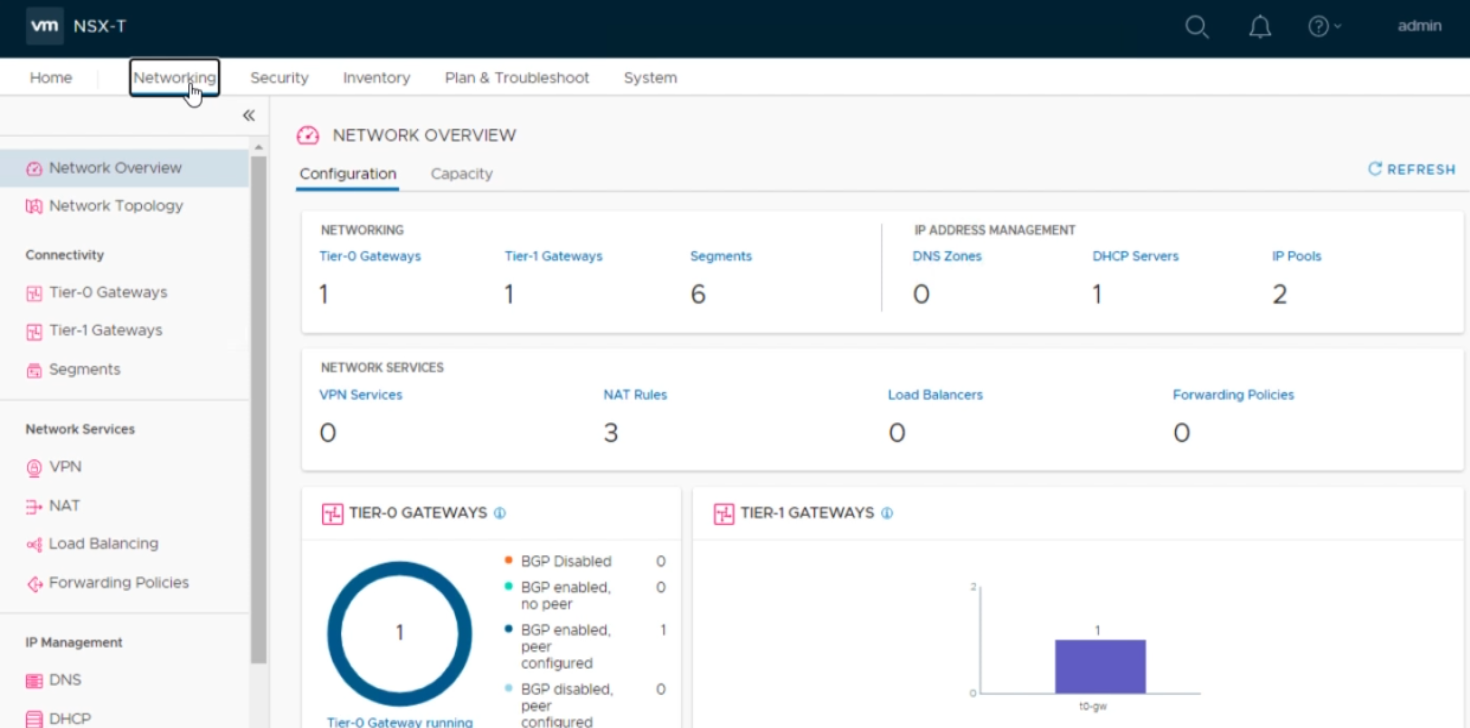

Management Plane cung cấp giao diện để người dùng tương tác. NSX-T Manager đóng vai trò là Entry Point quản lý qua WEB GUI hoặc RESTful API. Hệ thống yêu cầu Cluster 3 Node để đảm bảo tính dự phòng cao.

2. Control Plane

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 4-2d6d5db0-b284-4aca-9707-d08392b64a69 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

Control Plane điều phối cấu hình từ Management xuống Data Plane. VMware chia thành phần này thành Central Control Plane (CCP) và Local Control Plane (LCP) chạy trên các Transport Node.

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 5-b66f8476-024d-42d8-a81c-c55104433874 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

Từ phiên bản NSX-T 3.0 trở đi, VMware đã kết hợp Manager và Controller thành một Appliance duy nhất để tối ưu hiệu năng.

3. Data Plane

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 6-f611a01f-9ac6-4e9e-b794-6eb55ae2a454 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

Data Plane thực hiện chuyển tiếp gói tin. Các Edge Transport Nodes cung cấp dịch vụ mạng tập trung như Routing, NAT, DHCP, và Load Balancing trong hạ tầng ảo.

III. Khái niệm Segment, Transport Zone và Uplink

1. Segment và Transport Zone

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 7-224a9382-fe94-453f-a4b3-ed4148c5b02d GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

Trong VMware NSX-T, Segment là phân đoạn mạng ảo (Logical Switch), còn Transport Zone là mặt phẳng chứa các Segment đó.

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 8-3d7acd76-5568-411f-8a38-f2f237788a28 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI
Thiết kế hệ thống chuyên nghiệp OceanTech-Group 9-f5f5f622-107a-4dd8-ad82-c25062e45d2f GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

Các gói tin Overlay sẽ được truyền tải qua Tunnel GENEVE, giúp kết nối các VM thuộc các Hypervisor khác nhau một cách tự động và bảo mật.

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 10-dca88557-017c-4b64-8ea1-48a72144c264 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI
Thiết kế hệ thống chuyên nghiệp OceanTech-Group 11-07561d9d-82f5-4fe4-89a9-640f523d1498 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

2. Uplink và pNIC

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 12-69af7a10-0d77-4030-8d14-3946ea271d08 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

Hệ thống định nghĩa Card mạng vật lý là pNICs. Thông qua Uplink Profile, quản trị viên có thể thiết lập các chính sách Teaming (Failover hoặc Load Balance) để tối ưu đường truyền.

Thiết kế hệ thống chuyên nghiệp OceanTech-Group 13-0ae7a8e7-3c6a-4bbe-b0c2-2b5b982e98c7 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI
Thiết kế hệ thống chuyên nghiệp OceanTech-Group 14-fa0978ad-3049-4a21-92ae-e29d52896c12 GIỚI THIỆU NỀN TẢNG ẢO HÓA VMWARE NSX-T Thủ thuật VMWARE NSX-T VMWARE ESXI

Qua bài viết này, hy vọng bạn đã hiểu rõ NSX-T là gì và những lợi ích vượt trội mà VMware NSX-T mang lại cho hạ tầng doanh nghiệp.

Bạn có thể tham khảo thêm tại: Tài liệu kỹ thuật VMware
